Core 400W High-pressure sodium ballasts:Nearly all applications, including streetlights and parking lot lights, will use a standard magnetic core and coil ballast. Their high heat tolerance and wide array of voltages and configurations make core and coil the most popular of 400watt HPS ballast. To aid in installation and reduce labor costs, almost all core and coil ballasts we carry include pre-wired capacitors and ignitors The most common part of an High pressures sodium ballasts lighting fixtures that needs to be replaced will be the 400watt HPS ballasts
Standard high-pressure sodium ballasts:
400 watt HPS ballasts for HS (high-pressure sodium)discharge lamps,
HI/MH (high-pressure metal halide)discharge lamps,

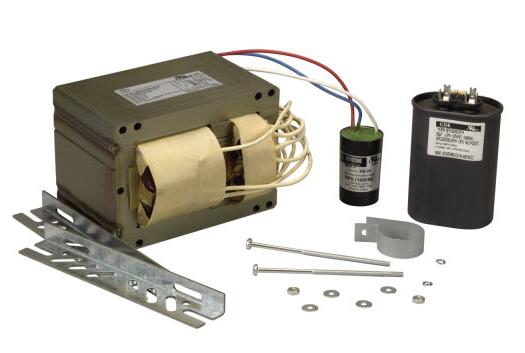

100% copper wire and silicon steel and vacuum-impregnated with Polyester Resin and Rosin.Stable quality,no noice,low temperature, low loss and long lifetime.The Metal Halide Ballasts 400W HPS-400R-1-KIT kit is good for 400W floodlight
Technology Parameters: AC:220V,230V,240V, 50Hz,60Hz TW130
|
Bulb parameters |
Ballast model |
Electrical data |
|||||||||
|
Lamp wattage |
(A)Lamp current |
Lamp voltage |
（A） start current |
(A) working current |
(cos) power factor |
cos0.9 |
(W) loss |
(W) power |
|||
|
(A) start current |
(A) circuit current |
（uF) capacitor |
|||||||||
| 35 | 0.53 | 85 | HPS35W | 0.77 | 0.53 | 0.37 | 0.250 | 0.213 | 6 | 8 | 43 |
|
50 |
0.62 |
95 |
HPS50W |
0.90 |
0.62 |
0.43 |
0.343 |
0.298 |
6 |
9 |
59 |
|
70 |
0.98 |
90 |
HPS70W |
1.42 |
0.98 |
0.38 |
0.476 |
0.414 |
12 |
12 |
82 |
| 100 | 1.10 | 100 | HPS100W | 1.60 | 1.10 | 0.47 | 0.659 | 0.573 | 12 | 13.5 | 113.5 |
|
150 |
1.80 |
100 |
HPS150W |
2.52 |
1.80 |
0.43 |
0.987 |
0.859 |
18 |
20 |
170 |
|
250 |
2.13 |
132 |
MH250W |
3.41 |
2.13 |
0.58 |
1.568 |
1.364 |
18 |
20 |
270 |
|
3.00 |
100 |
HPS250W |
4.20 |
3.00 |
0.42 |
1.880 |
1.400 |
32 |
26 |
275 |
|
|
400 |
3.40 |
120 |
MH400W |
5.20 |
3.40 |
0.57 |
2.474 |
2.152 |
28 |
26 |
426 |
|
4.45 |
100 |
HPS400W |
6.44 |
4.60 |
0.43 |
2.521 |
2.192 |
50 |
34 |
434 |
|
|
600 |
6.20 |
110 |
HPS600W |
8.68 |
6.20 |
0.47 |
3.746 |
3.258 |
60 |
45 |
645 |
| 1000 |
8.25 |
130 |
MH1000W |
12.38 |
8.25 |
0.58 |
6.098 |
5.303 |
65 |
50 |
1050 |
|
10.30 |
120 |
HPS1000W |
11.38 |
9.50 |
0.51 |
6.186 |
5.379 |
85 |
65 |
1065 |
|
